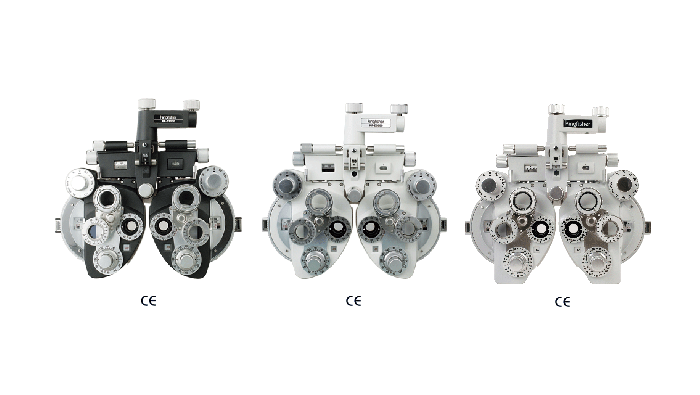

Products

    Adopting overall concentrated operation and large scale and improving performance.

    Automatical interlock between cross -cylinder lens and lens coordinates

Specifications

Sphere power: Range: +16.75 to -19.00D

                 Step: 0.25D

Cylinder power: range: 0.00D to -6.00D

           ( 0.00D to 8.00D with additional lens of-2.00D)

           Step: 0.25D

Cylinder axis: 0 to 180㣬5steps

Cross Cylinder: 25 diopters

Cross-cylinder lens: 0.25D

Rotary prisms: 0 to 20,1 steps
Auxiliary lens dial: O-Open aperture (two positions)
              R-Retinoscopic lens,+1.50D
              P-Polarizing lens,45left eye135right eye
              WMVorRMV-Maddox rod,vertical
                       white left eye
                       Red right eye
              WMHorRMH-Maddox rod,horizontal
                       white - left eye
                       Red - right eye
              GL- Green Lens
              RL-red Lens
              +.12- +0.12D Sphere
              PH- Pin hole
              10Ior 6U-10 base-in-left eye
                      6 base-up-right eye (Dissociating prisms)
             ۡ.50-0.50 fixed cross cyliner
                        OC- Occluder
P.D.adjustment: 48-75mm,1mm steps
Standard Accessory : One near point card with holder and rod,dust cover,face shield and case for lenses.
Standard Accessory lens:Two-.12D and -2.00 cylinder lenses. Two plano lenses for sealing front opening

Net Dimensions: 34529585(mm)

Net weight: Approx.4.5Kg
Package Dimensions: 380350155(mm)
Gross weight: 6Kg
